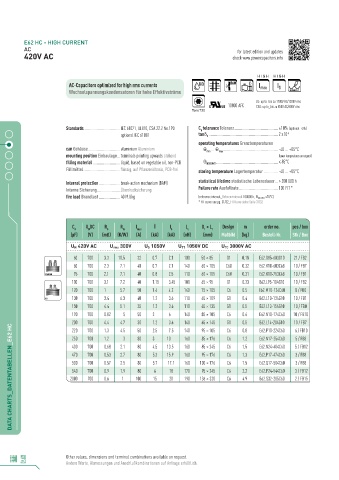

Page 6 - ELECTRONICON_Katalog_E62-E64

E62 HC - HIGH CURRENT
AC for latest edition and updates
420V AC check www.powercapacitors.info

HIGH HIGH
AC-Capacitors optimized for high rms currents
Wechselspannungskondensatoren für hohe Effektivströme

UL: up to_bis zu 1700V AC/1200V rms
10000 AFC CSA: up to_bis zu 850V AC/600V rms
Torx T20

Standards ...................................IEC 61071, UL810, CSA 22.2 No.190 C toleranceToleranz ...........................................±10% (optional ±5%)
N

optional IEC 61881 tanδ 0 ....................................................................2 x10 -4
operating temperatures Grenztemperaturen
can Gehäuse ...............................aluminium Aluminium Θ min ... Θ max ......................................................-40 ... +85°C
mounting position Einbaulage ...terminals pointing upwards stehend (lower temperatures on request)
filling material ...........................liquid, based on vegetable oil, non-PCB Θ HOTSPOT .............................................................≤ 85°C
Füllmittel ....................................flüssig, auf Pflanzenölbasis, PCB-frei storing temperature Lagertemperatur ..............-40 ... +85°C

Internal protection .....................break-action mechanism (BAM) statistical lifetime statistische Lebensdauer ...> 200 000 h
Interne Sicherung........................Überdrucksicherung Failure rate Ausfallrate ......................................100 FIT *
fire load Brandlast .....................40 MJ/kg (reference interval_Referenzintervall 100000 h, Θ HOTSPOT ≤70°C)
* FIT curve see pg. 31/32_FIT Kurve siehe Seite 31/32

C N U DC R S R th I max Î I S L e D × L 1 Design m order no. pcs / box
1
N
(µF) (V) (mΩ) (K/W) (A) (kA) (kA) (nH) (mm) Maßbild (kg) Bestell-Nr. Stk / Box
1050V U TT 1050V DC U TC 3000V AC
U N 420V AC U rms 300V U S
60 700 3.3 10.5 32 0.7 2.1 100 50 × 85 G1 0.18 E62.G85-603G10 21 / FB2
60 700 2.3 7.1 40 0.7 2.1 140 60 × 105 C68 0.32 E62.K10-603C68 10 / FB7
75 700 2.1 7.1 40 0.8 2.5 110 60 × 105 C68 0.31 E62.K10-753C68 10 / FB1
100 700 3.1 7.2 40 1.15 3.45 100 65 × 95 G1 0.33 E62.L95-104G10 10 / FB2
120 700 1 5.7 50 1.4 4.2 140 75 × 105 C6 0.5 E62.M10-124C60 8 / FB0
130 700 3.4 6.3 40 1.2 3.6 110 65 × 109 G1 0.4 E62.L10-134G10 10 / FB1
150 700 4.4 5.1 35 1.2 3.6 110 65 × 135 G1 0.5 E62.L13-154G10 10 / FB0
170 700 0.82 5 50 2 6 140 85 × 105 C6 0.6 E62.N10-174C60 10 / FB10
200 700 4.4 4.7 30 1.2 3.6 140 65 × 145 G1 0.5 E62.L14-204G10 10 / FB7
DATA CHARTS_DATENTABELLEN_E62 HC
220 700 1.3 4.5 50 2.5 7.5 140 95 × 105 C6 0.8 E62.P10-224C60 6 / FB10
250 700 1.2 3 80 3 10 160 85 × 176 C6 1.2 E62.N17-254C60 5 / FB8
400 700 0.68 2.1 80 4.5 13.5 160 85 × 245 C6 1.5 E62.N24-404C60 5 / FB12
470 700 0.53 2.7 80 5.3 15.9 160 95 × 176 C6 1.3 E62.P17-474C60 3 / FB8
500 700 0.57 2.5 80 5.7 17.1 160 100 × 176 C6 1.5 E62.Q17-504C60 3 / FB8
540 700 0.9 1.9 80 6 18 170 95 × 245 C6 2.2 E62.P24-544C60 3 / FB12
2000 700 0.6 1 100 15 20 190 136 × 320 C6 4.9 E62.S32-205C60 2 / FB15

6 Other values, dimensions and terminal combinations available on request.
Andere Werte, Abmessungen und Anschlußkombinationen auf Anfrage erhältlich.
