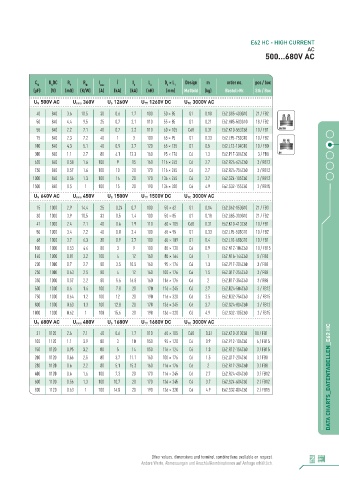

Page 7 - ELECTRONICON_Katalog_E62-E64
P. 7
E62 HC - HIGH CURRENT
AC
500...680V AC
C N U DC R S R th I max Î I S L e D × L 1 Design m order no. pcs / box
N
1
(µF) (V) (mΩ) (K/W) (A) (kA) (kA) (nH) (mm) Maßbild (kg) Bestell-Nr. Stk / Box
1260V U TT 1260V DC U TC 3000V AC
U N 500V AC U rms 360V U S
40 840 3.6 10.5 30 0.6 1.7 100 50 × 85 G1 0.18 E62.G85-403G10 21 / FB2
50 840 4.4 9.5 25 0.7 2.1 110 55 × 85 G1 0.21 E62.H85-503G10 18 / FB2
55 840 2.2 7.1 40 0.7 2.2 110 60 × 105 C68 0.31 E62.K10-553C68 10 / FB1
75 840 2.3 7.2 40 1 3 100 65 × 95 G1 0.33 E62.L95-753G10 10 / FB2
100 840 4.3 5.1 40 0.9 2.7 120 65 × 135 G1 0.5 E62.L13-104G10 10 / FB0
300 840 1.1 2.7 80 4.1 12.3 160 95 × 176 C6 1.3 E62.P17-304C60 3 / FB8
620 840 0.58 1.6 100 9 15 160 116 × 245 C6 2.7 E62.R24-624C60 3 / FB12
750 840 0.57 1.6 100 10 20 170 116 × 245 C6 2.7 E62.R24-754C60 3 / FB12
1000 840 0.56 1.3 100 14 20 170 136 × 245 C6 3.7 E62.S24-105C60 2 / FB12
1500 840 0.5 1 100 15 20 190 136 × 320 C6 4.9 E62.S32-155C60 2 / FB15
1500V U TT 1500V DC U TC 3000V AC
U N 640V AC U rms 450V U S
15 1000 2.9 14.4 25 0.24 0.7 100 50 × 62 G1 0.14 E62.G62-153G10 21 / FB3
30 1000 3.9 10.5 33 0.5 1.4 100 50 × 85 G1 0.18 E62.G85-303G10 21 / FB2
41 1000 2.4 7.1 40 0.6 1.9 110 60 × 105 C68 0.31 E62.K10-413C68 10 / FB1
50 1000 3.4 7.2 40 0.8 2.4 100 65 × 95 G1 0.33 E62.L95-503G10 10 / FB2
68 1000 3.7 6.3 30 0.9 2.7 100 65 × 109 G1 0.4 E62.L10-683G10 10 / FB1
100 1000 0.53 4.4 80 3 9 100 85 × 120 C6 0.9 E62.N12-104C60 10 / FB15
140 1000 0.81 3.2 100 4 12 160 85 × 164 C6 1 E62.N16-144C60 5 / FB8
200 1000 0.7 2.7 80 3.5 10.5 160 95 × 176 C6 1.3 E62.P17-204C60 3 / FB8
250 1000 0.63 2.5 80 4 12 160 100 × 176 C6 1.5 E62.Q17-254C60 3 / FB8
350 1000 0.57 2.2 80 5.6 16.8 160 116 × 176 C6 2 E62.R17-354C60 3 / FB8
500 1000 0.6 1.6 100 7.8 20 170 116 × 245 C6 2.7 E62.R24-504C60 3 / FB12
750 1000 0.64 1.2 100 12 20 190 116 × 320 C6 3.5 E62.R32-754C60 3 / FB15
800 1000 0.63 1.3 100 12.8 20 170 136 × 245 C6 3.7 E62.S24-804C60 2 / FB12
1000 1000 0.62 1 100 15.6 20 190 136 × 320 C6 4.9 E62.S32-105C60 2 / FB15
1680V U TT 1680V DC U TC 3000V AC
U N 680V AC U rms 480V U S
31 1120 2.6 7.1 40 0.6 1.7 110 60 × 105 C68 0.31 E62.K10-313C68 10 / FB1
100 1120 1.1 3.9 80 3 10 150 95 × 120 C6 0.9 E62.P12-104C60 6 / FB15
150 1120 0.95 3.2 80 5 14 150 116 × 124 C6 1.3 E62.R12-154C60 3 / FB15
200 1120 0.66 2.5 80 3.7 11.1 160 100 × 176 C6 1.5 E62.Q17-204C60 3 / FB8
280 1120 0.6 2.2 80 5.1 15.3 160 116 × 176 C6 2 E62.R17-284C60 3 / FB8
400 1120 0.6 1.6 100 7.3 20 170 116 × 245 C6 2.7 E62.R24-404C60 3 / FB12
600 1120 0.56 1.3 100 10.7 20 170 136 × 245 C6 3.7 E62.S24-604C60 2 / FB12 DATA CHARTS_DATENTABELLEN_E62 HC
800 1120 0.63 1 100 14.8 20 190 136 × 320 C6 4.9 E62.S32-804C60 2 / FB15
Other values, dimensions and terminal combinations available on request. 7
Andere Werte, Abmessungen und Anschlußkombinationen auf Anfrage erhältlich.
