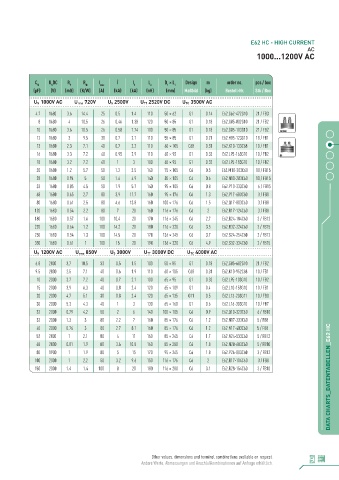

Page 9 - ELECTRONICON_Katalog_E62-E64

E62 HC - HIGH CURRENT
AC
1000...1200V AC

C N U DC R S R th I max Î I S L e D × L 1 Design m order no. pcs / box
N
1
(µF) (V) (mΩ) (K/W) (A) (kA) (kA) (nH) (mm) Maßbild (kg) Bestell-Nr. Stk / Box
2500V U TT 2520V DC U TC 3500V AC
U N 1000V AC U rms 720V U S
4.7 1680 3.6 14.4 25 0.5 1.4 110 50 × 62 G1 0.14 E62.G62-472G10 21 / FB3
8 1680 4 10.5 26 0.46 1.38 120 50 × 85 G1 0.18 E62.G85-802G10 21 / FB2
10 1680 3.6 10.5 26 0.58 1.74 100 50 × 85 G1 0.18 E62.G85-103G10 21 / FB2
12 1680 3 9.5 30 0.7 2.1 110 55 × 85 G1 0.21 E62.H85-123G10 18 / FB1
13 1680 2.3 7.1 40 0.7 2.2 110 60 × 105 C68 0.31 E62.K10-133C68 10 / FB1
16 1680 3.3 7.2 40 0.95 2.9 110 65 × 95 G1 0.33 E62.L95-163G10 10 / FB2
18 1680 3.2 7.2 40 1 3 100 65 × 95 G1 0.33 E62.L95-183G10 10 / FB2
20 1680 1.2 5.7 50 1.2 3.5 140 75 × 105 C6 0.5 E62.M10-203C60 10 / FB15
28 1680 0.94 5 50 1.6 4.9 140 85 × 105 C6 0.6 E62.N10-283C60 10 / FB15
33 1680 0.85 4.5 50 1.9 5.7 140 95 × 105 C6 0.8 E62.P10-333C60 6 / FB15
68 1680 0.65 2.7 80 3.9 11.7 160 95 × 176 C6 1.3 E62.P17-683C60 3 / FB8
80 1680 0.61 2.5 80 4.6 13.8 160 100 × 176 C6 1.5 E62.Q17-803C60 3 / FB8
120 1680 0.54 2.2 80 7 20 160 116 × 176 C6 2 E62.R17-124C60 3 / FB8
180 1680 0.57 1.6 100 10.4 20 170 116 × 245 C6 2.7 E62.R24-184C60 3 / FB12
220 1680 0.64 1.2 100 14.2 20 180 116 × 320 C6 3.5 E62.R32-224C60 3 / FB15
250 1680 0.54 1.3 100 14.5 20 170 136 × 245 C6 3.7 E62.S24-254C60 2 / FB12
330 1680 0.61 1 100 15 20 190 136 × 320 C6 4.9 E62.S32-334C60 2 / FB15
3000V U TT 3000V DC U TC 4000V AC
U N 1200V AC U rms 850V U S
6.8 2000 3.7 10.5 33 0.5 1.5 100 50 × 85 G1 0.18 E62.G85-682G10 21 / FB2
9.5 2000 2.5 7.1 40 0.6 1.9 110 60 × 105 C68 0.31 E62.K10-952C68 10 / FB1
10 2000 3.7 7.2 40 0.7 2.1 100 65 × 95 G1 0.33 E62.L95-103G10 10 / FB2
15 2000 3.9 6.3 40 0.8 2.4 120 65 × 109 G1 0.4 E62.L10-153G10 10 / FB1
20 2000 4.7 5.1 30 0.8 2.4 120 65 × 135 G11 0.5 E62.L13-203G11 10 / FB0
30 2000 5.3 4.3 40 1 3 130 65 × 160 G1 0.6 E62.L16-303G10 10 / FB7
32 2000 0.79 4.2 50 2 6 140 100 × 105 C6 0.9 E62.Q10-323C60 6 / FB10
33 2000 1.3 3 80 2.2 7 160 85 × 176 C6 1.2 E62.N17-333C60 5 / FB8
40 2000 0.76 3 80 2.7 8.1 160 85 × 176 C6 1.2 E62.N17-403C60 5 / FB8
53 2000 1 2.1 80 4 11 160 85 × 245 C6 1.7 E62.N24-533C60 5 / FB12
68 2000 0.81 1.9 80 3.6 10.8 160 85 × 280 C6 1.8 E62.N28-683C60 5 / FB10
80 1900 1 1.9 80 5 15 170 95 × 245 C6 1.8 E62.P24-803C60 3 / FB12
100 2000 1 2.2 50 3.2 9.6 150 116 × 176 C6 2 E62.R17-104C60 3 / FB8
150 2000 1.4 1.4 100 8 20 180 116 × 280 C6 3.1 E62.R28-154C60 3 / FB10 DATA CHARTS_DATENTABELLEN_E62 HC

Other values, dimensions and terminal combinations available on request. 9
Andere Werte, Abmessungen und Anschlußkombinationen auf Anfrage erhältlich.
