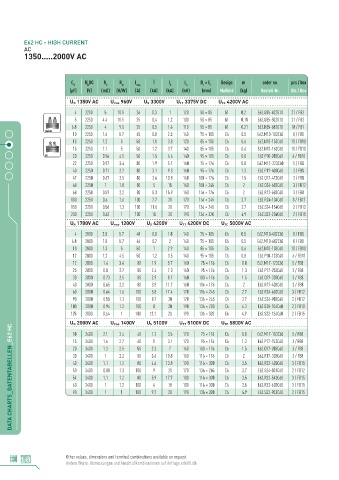

Page 10 - ELECTRONICON_Katalog_E62-E64
P. 10
E62 HC - HIGH CURRENT
AC
1350.....2000V AC
C N U DC R S R th I max Î I S L e D × L 1 Design m order no. pcs / box
N
1
(µF) (V) (mΩ) (K/W) (A) (kA) (kA) (nH) (mm) Maßbild (kg) Bestell-Nr. Stk / Box
3300V U TT 3375V DC U TC 4200V AC
U N 1350V AC U rms 960V U S
4 2250 5 10.5 26 0.3 1 120 50 × 85 G1 0.2 E62.G85-402G10 21 / FB2
5 2250 4.4 10.5 25 0.4 1.2 100 50 × 85 G1 0.18 E62.G85-502G10 21 / FB2
6.8 2250 4 9.5 25 0.5 1.6 110 55 × 85 G1 0.21 E62.H85-682G10 18 / FB1
10 2250 1.6 5.7 45 0.8 2.3 140 75 × 105 C6 0.5 E62.M10-103C60 8 / FB0
15 2250 1.2 5 50 1.1 3.3 120 85 × 105 C6 0.6 E62.N10-153C60 10 / FB10
16 2250 1.1 5 50 1.2 3.7 140 85 × 105 C6 0.6 E62.N10-163C60 10 / FB10
20 2250 0.96 4.5 50 1.5 4.6 140 95 × 105 C6 0.8 E62.P10-203C60 6 / FB10
22 2250 0.97 3.4 80 1.9 5.7 160 75 × 176 C6 0.8 E62.M17-223C60 5 / FB8
40 2250 0.71 2.7 80 3.1 9.3 160 95 × 176 C6 1.3 E62.P17-403C60 3 / FB8
47 2250 0.67 2.5 80 3.6 10.8 160 100 × 176 C6 1.5 E62.Q17-473C60 3 / FB8
68 2250 1 1.8 80 5 15 160 100 × 245 C6 2 E62.Q24-683C60 3 / FB12
68 2250 0.59 2.2 80 5.3 15.9 160 116 × 176 C6 2 E62.R17-683C60 3 / FB8
100 2250 0.6 1.6 100 7.7 20 170 116 × 245 C6 2.7 E62.R24-104C60 3 / FB12
150 2250 0.56 1.3 100 11.6 20 170 136 × 245 C6 3.7 E62.S24-154C60 2 / FB12
200 2250 0.62 1 100 15 20 190 136 × 320 C6 4.9 E62.S32-204C60 2 / FB15
4200V U TT 4200V DC U TC 5000V AC
U N 1700V AC U rms 1200V U S
4 2800 2.8 5.7 48 0.8 1.8 140 75 × 105 C6 0.5 E62.M10-402C60 8 / FB0
6.8 2800 1.8 5.7 46 0.7 2 140 75 × 105 C6 0.5 E62.M10-682C60 8 / FB0
10 2800 1.3 5 50 1 2.9 140 85 × 105 C6 0.6 E62.N10-103C60 10 / FB10
12 2800 1.2 4.5 50 1.2 3.5 140 95 × 105 C6 0.8 E62.P10-123C60 6 / FB10
12 2800 1.4 3.4 80 1.9 5.7 160 75 × 176 C6 0.8 E62.M17-123C60 5 / FB8
25 2800 0.8 2.7 80 2.4 7.3 160 95 × 176 C6 1.3 E62.P17-253C60 3 / FB8
30 2800 0.73 2.5 80 2.9 8.7 160 100 × 176 C6 1.5 E62.Q17-303C60 3 / FB8
40 2800 0.65 2.2 80 3.9 11.7 160 116 × 176 C6 2 E62.R17-403C60 3 / FB8
60 2800 0.64 1.6 100 5.8 17.4 170 116 × 245 C6 2.7 E62.R24-603C60 3 / FB12
90 2800 0.58 1.3 100 8.7 20 170 136 × 245 C6 3.7 E62.S24-903C60 2 / FB12
100 2800 0.94 1.2 100 8 20 190 136 × 280 C6 4.3 E62.S28-104C60 2 / FB10
125 2800 0.64 1 100 12.1 20 190 136 × 320 C6 4.9 E62.S32-134C60 2 / FB15
5100V U TT 5100V DC U TC 5800V AC
U N 2000V AC U rms 1400V U S
DATA CHARTS_DATENTABELLEN_E62 HC
10 3400 2.1 3.4 40 1.2 3.5 170 75 × 176 C6 0.8 E62.M17-103C60 5 / FB8
15 3400 1.6 2.7 40 1 3.1 170 95 × 176 C6 1.3 E62.P17-153C60 3 / FB8
20 3400 1.3 2.5 50 2.3 7 160 100 × 176 C6 1.5 E62.Q17-203C60 3 / FB8
30 3400 1 2.2 50 3.6 10.8 160 116 × 176 C6 2 E62.R17-303C60 3 / FB8
40 3400 1.1 1.2 80 4.6 13.8 190 116 × 320 C6 3.5 E62.R32-403C60 3 / FB15
50 3400 0.88 1.3 100 9 20 170 136 × 245 C6 3.7 E62.S24-503C60 2 / FB12
54 3400 1.1 1.2 80 5.9 17.7 180 116 × 320 C6 3.5 E62.R32-543C60 3 / FB15
60 3400 1 1.2 100 6 18 180 116 × 320 C6 3.5 E62.R32-603C60 3 / FB15
90 3400 1 1 100 9.7 20 190 136 × 320 C6 4.9 E62.S32-903C60 2 / FB15
10 Other values, dimensions and terminal combinations available on request.
Andere Werte, Abmessungen und Anschlußkombinationen auf Anfrage erhältlich.
