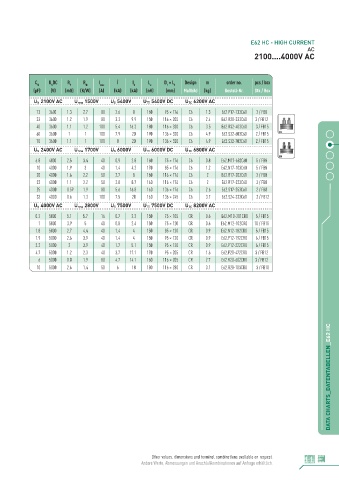

Page 11 - ELECTRONICON_Katalog_E62-E64
P. 11
E62 HC - HIGH CURRENT
AC
2100....4000V AC
C N U DC R S R th I max Î I S L e D × L 1 Design m order no. pcs / box
N
1
(µF) (V) (mΩ) (K/W) (A) (kA) (kA) (nH) (mm) Maßbild (kg) Bestell-Nr. Stk / Box
5400V U TT 5400V DC U TC 6200V AC
U N 2100V AC U rms 1500V U S
13 3600 1.3 2.7 80 2.6 8 160 95 × 176 C6 1.3 E62.P17-133C60 3 / FB8
33 3600 1.2 1.9 80 3.3 9.9 150 116 × 205 C6 2.4 E62.R20-333C60 3 / FB12
40 3600 1.1 1.2 100 5.4 16.2 180 116 × 320 C6 3.5 E62.R32-403C60 3 / FB15
60 3600 1 1 100 7.9 20 190 136 × 320 C6 4.9 E62.S32-603C60 2 / FB15
70 3600 1.1 1 100 8 20 190 136 × 320 C6 4.9 E62.S32-703C60 2 / FB15
6000V U TT 6000V DC U TC 6800V AC
U N 2400V AC U rms 1700V U S
6.8 4000 2.5 3.4 40 0.9 2.8 160 75 × 176 C6 0.8 E62.M17-682C60 5 / FB8
10 4000 1.9 3 40 1.4 4.2 170 85 × 176 C6 1.2 E62.N17-103C60 5 / FB8
20 4000 1.6 2.2 50 2.7 8 160 116 × 176 C6 2 E62.R17-203C61 3 / FB8
22 4000 1.1 2.2 50 2.8 8.7 160 116 × 176 C6 2 E62.R17-223C60 3 / FB8
25 4000 0.59 1.9 80 5.6 16.8 160 136 × 176 C6 2.6 E62.S17-253C60 2 / FB8
33 4000 0.6 1.3 100 7.5 20 160 136 × 245 C6 3.7 E62.S24-333C60 2 / FB12
7500V U TT 7500V DC U TC 8200V AC
U N 4000V AC U rms 2800V U S
0.2 5000 5.1 5.7 16 0.7 2.2 150 75 × 105 CR 0.6 E62.M10-201CR0 5 / FB15
1 5000 3.9 5 40 0.8 2.4 150 75 × 120 CR 0.6 E62.M12-102CR0 10 / FB15
1.8 5000 2.7 4.4 40 1.4 4 150 85 × 120 CR 0.9 E62.N12-182CR0 5 / FB15
1.9 5000 2.6 3.9 40 1.4 4 150 95 × 120 CR 0.9 E62.P12-192CR0 6 / FB15
2.2 5000 2 3.9 40 1.7 5.1 150 95 × 120 CR 0.9 E62.P12-222CR0 6 / FB15
4.7 5000 1.2 2.3 40 3.7 11.1 170 95 × 205 CR 1.6 E62.P20-472CR0 3 / FB12
6 5000 0.8 1.9 80 4.7 14.1 160 116 × 205 CR 2.7 E62.R20-602CR0 3 / FB12
10 5000 2.6 1.4 50 6 18 180 116 × 280 CR 3.1 E62.R28-103CR0 3 / FB10
Other values, dimensions and terminal combinations available on request. 11 DATA CHARTS_DATENTABELLEN_E62 HC
Andere Werte, Abmessungen und Anschlußkombinationen auf Anfrage erhältlich.
