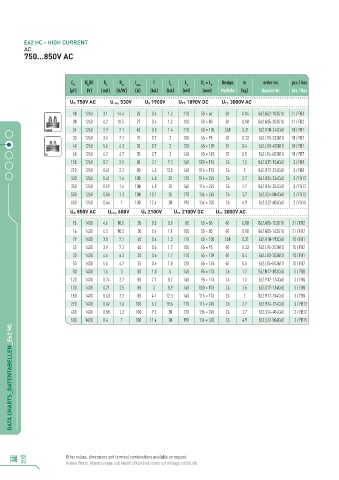

Page 8 - ELECTRONICON_Katalog_E62-E64
P. 8
E62 HC - HIGH CURRENT
AC
750...850V AC
C N U DC R S R th I max Î I S L e D × L 1 Design m order no. pcs / box
1
N
(µF) (V) (mΩ) (K/W) (A) (kA) (kA) (nH) (mm) Maßbild (kg) Bestell-Nr. Stk / Box
1900V U TT 1890V DC U TC 3000V AC
U N 750V AC U rms 530V U S
10 1260 3.1 14.4 20 0.4 1.2 110 50 × 62 G1 0.14 E62.G62-103G10 21 / FB3
20 1260 4.2 10.5 27 0.4 1.2 100 50 × 85 G1 0.18 E62.G85-203G10 21 / FB2
24 1260 2.9 7.1 40 0.5 1.4 110 60 × 105 C68 0.31 E62.K10-243C68 10 / FB1
33 1260 3.6 7.2 37 0.7 2 100 65 × 95 G1 0.33 E62.L95-333G10 10 / FB2
40 1260 5.6 6.3 30 0.7 2 120 65 × 109 G1 0.4 E62.L10-403G10 10 / FB1
60 1260 6.2 4.7 35 0.7 2 140 65 × 145 G1 0.5 E62.L14-603G10 10 / FB7
150 1260 0.7 2.5 80 3.1 9.3 160 100 × 176 C6 1.5 E62.Q17-154C60 3 / FB8
220 1260 0.61 2.2 80 4.5 13.5 160 116 × 176 C6 2 E62.R17-224C60 3 / FB8
330 1260 0.61 1.6 100 6.8 20 170 116 × 245 C6 2.7 E62.R24-334C60 3 / FB12
350 1260 0.59 1.6 100 6.8 20 160 116 × 245 C6 2.7 E62.R24-354C60 3 / FB12
500 1260 0.56 1.3 100 10.1 20 170 136 × 245 C6 3.7 E62.S24-504C60 2 / FB12
600 1260 0.64 1 100 12.4 20 190 136 × 320 C6 4.9 E62.S32-604C60 2 / FB15
2100V U TT 2100V DC U TC 3000V AC
U N 850V AC U rms 600V U S
15 1400 4.6 10.5 25 0.3 0.9 80 50 × 85 G1 0.18 E62.G85-153G10 21 / FB2
16 1400 4.5 10.5 30 0.4 1.1 100 50 × 85 G1 0.18 E62.G85-163G10 21 / FB2
19 1400 3.1 7.1 40 0.4 1.3 110 60 × 105 C68 0.31 E62.K10-193C68 10 / FB1
25 1400 3.9 7.2 40 0.6 1.7 100 65 × 95 G1 0.33 E62.L95-253G10 10 / FB2
30 1400 4.4 6.3 30 0.6 1.7 110 65 × 109 G1 0.4 E62.L10-303G10 10 / FB1
50 1400 5.6 4.7 25 0.6 1.8 120 65 × 145 G1 0.5 E62.L14-503G10 10 / FB7
80 1400 1.6 3 80 1.8 5 160 85 × 176 C6 1.2 E62.N17-803C60 5 / FB8
120 1400 0.74 2.7 80 2.7 8.2 160 95 × 176 C6 1.3 E62.P17-124C60 3 / FB8
130 1400 0.71 2.5 80 3 8.9 160 100 × 176 C6 1.5 E62.Q17-134C60 3 / FB8
180 1400 0.63 2.2 80 4.1 12.3 160 116 × 176 C6 2 E62.R17-184C60 3 / FB8
270 1400 0.62 1.6 100 6.2 18.6 170 116 × 245 C6 2.7 E62.R24-274C60 3 / FB12
400 1400 0.58 1.3 100 9.2 20 170 136 × 245 C6 3.7 E62.S24-404C60 2 / FB12
500 1400 0.4 1 100 11.4 20 190 136 × 320 C6 4.9 E62.S32-504C60 2 / FB15
DATA CHARTS_DATENTABELLEN_E62 HC
8 Other values, dimensions and terminal combinations available on request.
Andere Werte, Abmessungen und Anschlußkombinationen auf Anfrage erhältlich.
