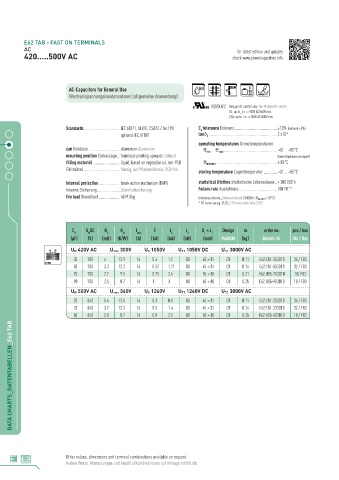

Page 12 - ELECTRONICON_Katalog_E62-E64

E62 TAB - FAST ON TERMINALS
AC for latest edition and updates
420.....500V AC check www.powercapacitors.info

AC-Capacitors for General Use
Wechselspannungskondensatoren (allgemeine Anwendung)

10000 AFC Designs D1 and D2 only_Nur Maßbild D1 und D2
UL: up to_bis zu 930V AC/660V rms
CSA: up to_bis zu 850V AC/600V rms
Standards ...................................IEC 61071, UL810, CSA22.2 No.190 C toleranceToleranz ..........................................±10% (optional ±5%)

N
optional IEC 61881 tanδ 0 ...................................................................2 x10 -4
operating temperatures Grenztemperaturen
can Gehäuse ...............................aluminium Aluminium Θ min ... Θ max .....................................................-40 ... +85°C
mounting position Einbaulage ...terminals pointing upwards stehend (lower temperatures on request)
filling material ...........................liquid, based on vegetable oil, non-PCB Θ HOTSPOT ............................................................≤ 85°C
Füllmittel ....................................flüssig, auf Pflanzenölbasis, PCB-frei storing temperature Lagertemperatur .............-40 ... +85°C

Internal protection .....................break-action mechanism (BAM) statistical lifetime statistische Lebensdauer ..> 200 000 h
Interne Sicherung........................Überdrucksicherung Failure rate Ausfallrate .....................................100 FIT *
fire load Brandlast .....................40 MJ/kg (reference interval_Referenzintervall 100000 h, Θ HOTSPOT ≤ 70°C)
* FIT curve see pg. 31/32_FIT Kurve siehe Seite 31/32

C N U DC R S R th I max Î I S L e D × L 1 Design m order no. pcs / box
1
N
(µF) (V) (mΩ) (K/W) (A) (kA) (kA) (nH) (mm) Maßbild (kg) Bestell-Nr. Stk / Box
1050V U TT 1050V DC U TC 3000V AC
U N 420V AC U rms 300V U S
35 700 4 13.9 16 0.4 1.2 80 40 × 81 D1 0.11 E62.E81-353D10 36 / FB3
50 700 3.3 12.2 16 0.57 1.71 80 45 × 81 D1 0.14 E62.F81-503D10 32 / FB3
75 700 2.7 9.5 16 0.75 2.6 80 55 × 85 D1 0.21 E62.H85-753D10 18/ FB3
90 700 2.5 8.7 16 1 3 80 60 × 85 D1 0.25 E62.K85-903D10 18 / FB3
1260V U TT 1260V DC U TC 3000V AC
U N 500V AC U rms 360V U S
20 840 5.4 13.8 16 0.3 0.8 80 40 × 81 D1 0.11 E62.E81-203D10 36 / FB3
33 840 3.7 12.2 16 0.5 1.4 80 45 × 81 D1 0.14 E62.F81-333D10 32 / FB3
60 840 2.8 8.7 16 0.8 2.5 80 60 × 85 D1 0.25 E62.K85-603D10 18 / FB3
DATA CHARTS_DATENTABELLEN_E62 TAB

12 Other values, dimensions and terminal combinations available on request.
Andere Werte, Abmessungen und Anschlußkombinationen auf Anfrage erhältlich.
