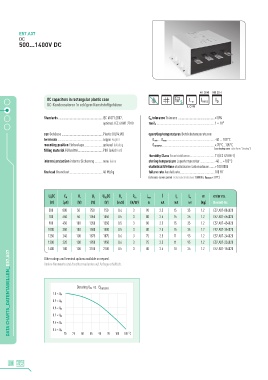

P. 16
E57.A07
DC
500...1400V DC
HIGH HIGH
DC capacitors in rectangular plastic case L e
DC-Kondensatoren in eckigem Kunststoffgehäuse LO W
Standards .......................................................IEC 61071:2007, C N tolerance Toleranz .............................................±10%
optional: IEC 61881:2010 tanδ 0 ........................................................................2 × 10 -4
can Gehäuse ...................................................Plastic (UL94:V0) operating temperatures Betriebstemperaturen
terminals ........................................................copper kupfer Θ min ... Θ max ...........................................................-40 ... 105°C
mounting position Einbaulage .......................optional beliebig Θ HOTSPOT .................................................................≤ 70°C…105°C
filling material Füllmittel ..............................PUR (solid fest) (see derating curve_siehe Kurve "Derating")
Humidity Class Feuchteklasse ...............................T1 (IEC 62498-1)
internal protection interne Sicherung ..........none keine storing temperature Lagertemperatur ..................-40 ... +105°C
statistical lifetime statistische Lebensdauer .......> 100 000h
fire load Brandlast .........................................40 MJ/kg failure rate Ausfallrate ...........................................100 FIT
(reference service period_Referenzbetriebsdauer 100000 h, ΘHOTSPOT ≤ 70°C)
U N DC C N U r U S U BB DC R s R th I max Î I s L e m order no.
(V) (µF) (V) (V) (V) (mΩ) (K/W) A kA kA nH (kg) Bestell-Nr.
500 800 50 750 750 0.4 3 90 2.5 15 35 1.2 E57.A07-804020
700 650 50 1050 1050 0.5 3 80 2.5 15 35 1.2 E57.A07-654020
900 450 100 1350 1350 0.5 3 80 2.5 15 35 1.2 E57.A07-454020
1000 350 100 1500 1500 0.5 3 80 2.5 15 35 1.2 E57.A07-354020
1250 240 100 1875 1875 0.6 3 75 2.5 11 95 1.2 E57.A07-244020
1300 220 100 1950 1950 0.6 3 75 2.5 11 95 1.2 E57.A07-224020
1400 180 100 2100 2100 0.5 3 80 2.5 10 35 1.2 E57.A07-184020
DATA CHARTS_DATENTABELLEN_E57.A07
Other ratings and terminal options available on request.
Andere Nennwerte und Anschlussvarianten auf Anfrage erhältlich.
vs. Θ
Derating U N HOTSPOT
1.0 × U N
0.9 × U N
0.8 × U N
0.7 × U N
0.6 × U N
0.5 × U N
70 75 80 85 90 95 100 105 C
