E57.A07
DC
for latest edition and updates 500 … 1400V DC
check www.powercapacitors.info

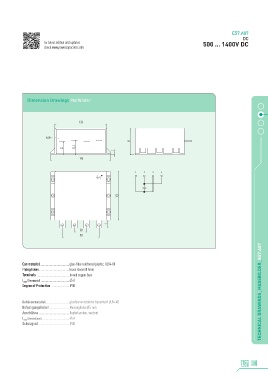

Dimension Drawings Maßbilder
126
resin
65
33 35,5
3
146
120
19
30
90
Can material ....................................glas-fibre reinforced plastic, UL94-V0
Fixing holes .....................................brass sleeve Ø 5mm
Terminals ........................................tinned copper bars
I max (Terminals) ...................................45 A
Degree of Protection ......................IP00 TECHNICAL DRAWINGS_MASSBILDER_E57.A07
Gehäusematerial ............................glasfaserverstärkter Kunststoff UL94-V0
Befestigungslöcher ........................Messinghülse Ø 5 mm
Anschlüsse .....................................Kupferlaschen, verzinnt
I max (Anschlüsse) .................................45 A
Schutzgrad ......................................IP00
