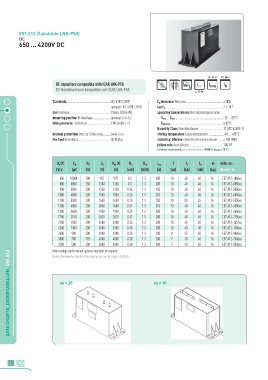

Page 20 - E57_E59_SR17_Inhalt.indd

E57.A12 (Substitute LNK-P5X)
DC
650 … 4200V DC

HIGH HIGH
DC capacitors compatible with ICAR LNK-P5X
DC-Kondensatoren kompatibel mit ICAR LNK-P5X LO W

Standards ......................................................IEC 61071:2007 C N tolerance Toleranz ..............................................±10%
optional: IEC 61881:2010 tanδ 0 ........................................................................2 × 10 -4
can Gehäuse ..................................................Plastic (UL94:V0) operating temperatures Betriebstemperaturen
mounting position Einbaulage ......................optional beliebig Θ min ... Θ max ...........................................................-25 ... 85°C
filling material Füllmittel .............................PUR (solid fest) Θ HOTSPOT .................................................................≤ 85°C
Humidity Class Feuchteklasse ..............................T1 (IEC 62498-1)
internal protection interne Sicherung .........none keine storing temperature Lagertemperatur ..................-40 ... +85°C
fire load Brandlast ........................................40 MJ/kg statistical lifetime statistische Lebensdauer .......> 100 000h
failure rate Ausfallrate ...........................................100 FIT
(reference service period_Referenzbetriebsdauer 100000 h, ΘHOTSPOT ≤ 70°C)

U N DC C N U R U S U BB DC R S R th I max Î I S L e m order no.
(V) ≤ (μF) (V) (V) (V) (mΩ) (K/W) (A) (kA) (kA) (nH) (kg) Bestell-Nr.
650 10000 100 975 975 0.2 1.3 300 10 40 40 16 E57.A12-1060xx
800 8000 150 1200 1200 0.3 1.3 200 10 40 40 16 E57.A12-8050xx
900 5000 200 1350 1350 0.34 1.3 150 10 40 40 16 E57.A12-5050xx
1000 4000 200 1500 1500 0.26 1.3 210 10 40 40 16 E57.A12-4050xx
1100 5500 200 1650 1650 0.25 1.3 250 30 80 45 16 E57.A12-5550xx
1200 4500 200 2000 1800 0.31 1.3 210 10 40 40 16 E57.A12-4550xx
1300 3600 200 1950 1950 0.31 1.3 200 10 40 40 16 E57.A12-3650xx
1750 2150 200 2625 2625 0.31 1.3 200 10 40 40 16 E57.A12-2150xx
2100 1500 200 3600 3300 0.35 1.3 200 10 40 40 16 E57.A12-1551xx
2200 1300 200 3600 3300 0.35 1.3 200 10 40 30 16 E57.A12-1350xx
2600 900 200 3900 3900 0.35 1.3 180 8 35 40 16 E57.A12-9040xx
3000 700 170 4500 4500 0.38 1.3 200 7 30 40 16 E57.A12-7040xx
3200 500 200 4800 4800 0.38 1.3 200 7 30 40 16 E57.A12-5040xx
Other ratings and terminal options available on request.
DATA CHARTS_DATENTABELLEN_E57.A12
Andere Nennwerte und Anschlussvarianten auf Anfrage erhältlich.

xx = 20 xx = 10
