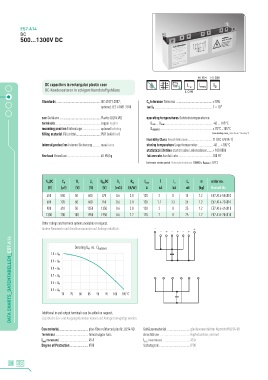

E57.A14
DC
500...1300V DC

HIGH HIGH
DC capacitors in rectangular plastic case L e
DC-Kondensatoren in eckigem Kunststoffgehäuse LO W

Standards .......................................................IEC 61071:2007, C N tolerance Toleranz .............................................±10%
optional: IEC 61881:2010 tanδ 0 ........................................................................2 × 10 -4

can Gehäuse ...................................................Plastic (UL94:V0) operating temperatures Betriebstemperaturen
terminals ........................................................copper kupfer Θ min ... Θ max ...........................................................-40 ... 105°C
mounting position Einbaulage .......................optional beliebig Θ HOTSPOT .................................................................≤ 70°C…105°C
filling material Füllmittel ..............................PUR (solid fest) (see derating curve_siehe Kurve "Derating")
Humidity Class Feuchteklasse ...............................T1 (IEC 62498-1)
internal protection interne Sicherung ..........none keine storing temperature Lagertemperatur ..................-40 ... +105°C
statistical lifetime statistische Lebensdauer .......> 100 000h
fire load Brandlast .........................................40 MJ/kg failure rate Ausfallrate ...........................................100 FIT
(reference service period_Referenzbetriebsdauer 100000 h, ΘHOTSPOT ≤ 70°C)

U N DC C N U r U S U BB DC R s R th I max Î I s L e m order no.
(V) (µF) (V) (V) (V) (mΩ) (K/W) A kA kA nH (kg) Bestell-Nr.
450 550 50 600 675 0.6 2.8 120 2 8 15 1.2 E57.A14-554010
500 720 50 600 750 0.6 2.8 120 1.1 3.3 25 1.2 E57.A14-724010
900 410 50 1350 1350 0.6 2.8 120 2 8 25 1.2 E57.A14-414010
1300 200 100 1950 1950 0.6 2.2 120 2 8 25 1.2 E57.A14-204010
Other ratings and terminal options available on request.
Andere Nennwerte und Anschlussvarianten auf Anfrage erhältlich.

DATA CHARTS_DATENTABELLEN_E57.A14

vs. Θ
Derating U N HOTSPOT
1.0 × U N
0.9 × U N
0.8 × U N
0.7 × U N
0.6 × U N
0.5 × U N
70 75 80 85 90 95 100 105 C

Additional in and output terminals can be added on request.
Zusätzliche Ein- und Ausgangsklemmen können auf Anfrage hinzugefügt werden.

Can material ....................................glas-fibre reinforced plastic, UL94-V0 Gehäusematerial ............................glasfaserverstärkter Kunststoff UL94-V0
Terminals ........................................tinned copper bars Anschlüsse .....................................Kupferlaschen, verzinnt
I max (Terminals) ...................................45 A I max (Anschlüsse) .................................45 A
Degree of Protection ......................IP00 Schutzgrad ......................................IP00
