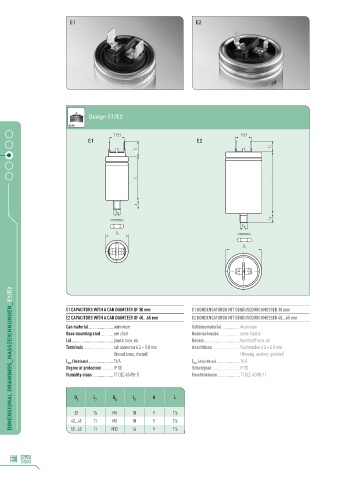

Page 26 - ELECTRONICON_Katalog_E62-E64

E1 E2

Design E1/E2

E1 E2

DIMENSIONAL DRAWINGS_MASSZEICHNUNGEN_E1/E2

E1 CAPACITORS WITH A CAN DIAMETER OF 30 mm E1 KONDENSATOREN MIT GEHÄUSEDURCHMESSER 30 mm
E2 CAPACITORS WITH A CAN DIAMETER OF 40...65 mm E2 KONDENSATOREN MIT GEHÄUSEDURCHMESSER 40...65 mm
Can material ........................ aluminium Gehäusematerial ..................Aluminium
Base mounting stud ............ see chart Bodenschraube.....................siehe Tabelle
Lid......................................... plastic (UL94: VO) Deckel ...................................Kunststoff (UL94: VO)
Terminals ............................. tab connector 6.3 × 0.8 mm Anschlüsse ...........................Flachstecker 6.3 × 0.8 mm
(tinned brass, riveted) (Messing, verzinnt, genietet)
I max (Terminals) ........................ 16 A I max (Anschlüsse) .......................16 A
Degree of protection ........... IP 00 Schutzgrad ............................IP 00
Humidity class..................... T1 (IEC 62498-1) Feuchteklasse ......................T1 (IEC 62498-1)

D 1 L 2 G B L B K L

30 15 M8 10 9 7.5
40...45 11 M8 10 9 7.5
50...65 11 M12 16 9 7.5

26
