CD

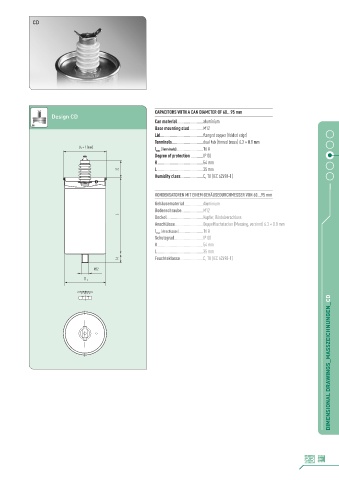

CAPACITORS WITH A CAN DIAMETER OF 60...95 mm
Design CD
Can material .........................aluminium
Base mounting stud .............M12
Lid..........................................flanged copper (folded edge)
Terminals ..............................dual tab (tinned brass) 6.3 × 0.8 mm
D + 7 (max) I max (Terminals) .........................16 A
Degree of protection ............IP 00
K ............................................54 mm
L .............................................35 mm
Humidity class......................C, TX (IEC 62498-1)

KONDENSATOREN MIT EINEM GEHÄUSEDURCHMESSER VON 60...95 mm
Gehäusematerial ..................Aluminium
Bodenschraube.....................M12
Deckel ...................................Kupfer, Bördelverschluss
Anschlüsse ...........................Doppelflachstecker (Messing, verzinnt) 6.3 × 0.8 mm
I max (Anschlüsse) .......................16 A
Schutzgrad ............................IP 00
K ............................................54 mm
L .............................................35 mm
Feuchteklasse ......................C, TX (IEC 62498-1)

23 DIMENSIONAL DRAWINGS_MASSZEICHNUNGEN_CD
