D1 D2

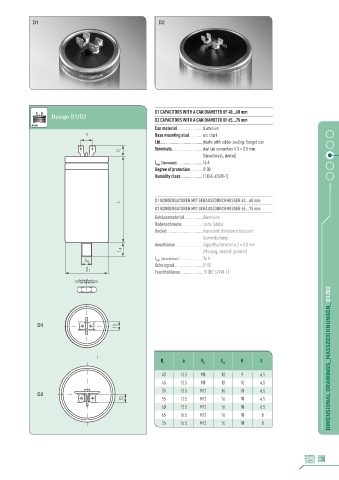

D1 CAPACITORS WITH A CAN DIAMETER OF 40...60 mm
Design D1/D2 D2 CAPACITORS WITH A CAN DIAMETER OF 65...75 mm
Can material ........................ aluminium
Base mounting stud ............ see chart
Lid......................................... plastic with rubber sealing, flanged can
Terminals ............................. dual tab connectors 6.3 × 0.8 mm
12
(tinned brass, riveted)
I max (Terminals) ........................ 16 A
Degree of protection ........... IP 00
Humidity class..................... T1 (IEC 62498-1)

D1 KONDENSATOREN MIT GEHÄUSEDURCHMESSER 40...60 mm
D2 KONDENSATOREN MIT GEHÄUSEDURCHMESSER 65...75 mm
Gehäusematerial ..................Aluminium
Bodenschraube.....................siehe Tabelle
Deckel ...................................Kunststoff, Bördelverschluss mit
Gummidichtung
Anschlüsse ...........................Doppelflachstecker 6.3 × 0.8 mm
(Messing, verzinnt, genietet)
I max (Anschlüsse) .......................16 A
Schutzgrad ............................IP 00
Feuchteklasse ......................T1 (IEC 62498-1)

D1

D a G L K L DIMENSIONAL DRAWINGS_MASSZEICHNUNGEN_D1/D2
1 B B
40 13.5 M8 10 9 6.5
45 13.5 M8 10 10 6.5
50 13.5 M12 16 10 6.5
D2
55 13.5 M12 16 10 6.5
60 13.5 M12 16 10 6.5
65 16.5 M12 16 10 8
75 16.5 M12 16 10 8
