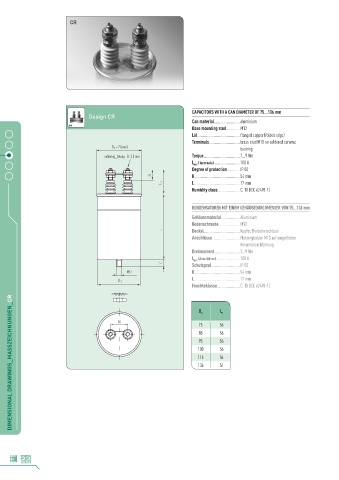

Page 22 - ELECTRONICON_Katalog_E62-E64

CR

CAPACITORS WITH A CAN DIAMETER OF 75...136 mm
Design CR
Can material .........................aluminium
Base mounting stud .............M12
Lid..........................................flanged copper (folded edge)
Terminals ..............................brass stud M10 on soldered ceramic
D + 7 (max) bushing
Torque ...................................7...9 Nm
I max (Terminals) .........................100 A
Degree of protection ............IP 00
K ............................................54 mm
L .............................................17 mm
Humidity class......................C, TX (IEC 62498-1)

KONDENSATOREN MIT EINEM GEHÄUSEDURCHMESSER VON 75...136 mm
Gehäusematerial ..................Aluminium
Bodenschraube.....................M12
Deckel ...................................Kupfer, Bördelverschluss
Anschlüsse ...........................Messingbolzen M10 auf eingelöteter
Keramikdurchführung
Drehmoment .........................7...9 Nm
I max (Anschlüsse) .......................100 A
Schutzgrad ............................IP 00
K ............................................54 mm
L .............................................17 mm
Feuchteklasse ......................C, TX (IEC 62498-1)

DIMENSIONAL DRAWINGS_MASSZEICHNUNGEN_CR
D 1 L 2

75 56
85 56
95 56
100 56
116 54
136 51

22
