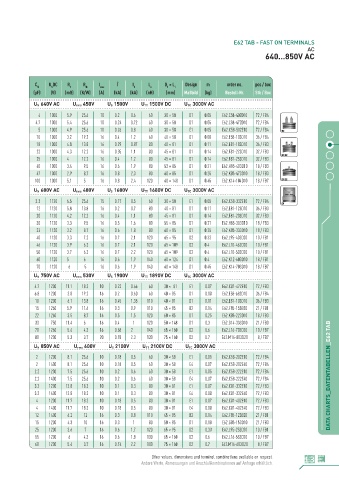

E62 TAB - FAST ON TERMINALS
AC
640...850V AC

C N U DC R S R th I max Î I S L e D × L 1 Design m order no. pcs / box
1
N
(µF) (V) (mΩ) (K/W) (A) (kA) (kA) (nH) (mm) Maßbild (kg) Bestell-Nr. Stk / Box
1500V U TT 1500V DC U TC 3000V AC
U N 640V AC U rms 450V U S
4 1000 5.9 25.6 10 0.2 0.6 60 30 × 58 D1 0.05 E62.C58-402D10 72 / FB4
4.7 1000 5.4 25.6 10 0.24 0.72 60 30 × 58 D1 0.05 E62.C58-472D10 72 / FB4
5 1000 4.9 25.6 10 0.26 0.8 60 30 × 58 E1 0.05 E62.C58-502E10 72 / FB4
10 1000 3.2 19.2 16 0.4 1.2 60 40 × 58 D1 0.08 E62.E58-103D10 36 / FB4
18 1000 4.8 13.8 16 0.29 0.87 80 40 × 81 D1 0.11 E62.E81-183D10 36 / FB3
22 1000 4.3 12.2 16 0.35 1.1 80 45 × 81 D1 0.14 E62.F81-223D10 32 / FB3
25 1000 4 12.2 16 0.4 1.2 80 45 × 81 D1 0.14 E62.F81-253D10 32 / FB3
40 1000 3.4 9.5 16 0.6 1.9 80 53 × 85 D1 0.21 E62.H85-403D10 18 / FB3
47 1000 2.9 8.7 16 0.8 2.3 80 60 × 85 D1 0.25 E62.K85-473D10 18 / FB3
100 1000 5.1 5 16 0.8 2.4 120 60 × 148 D1 0.45 E62.K14-104D10 18 / FB7
1680V U TT 1680V DC U TC 3000V AC
U N 680V AC U rms 480V U S
3.3 1120 6.5 25.6 15 0.17 0.5 60 30 × 58 E1 0.05 E62.C58-332E10 72 / FB4
12 1120 5.8 13.8 16 0.2 0.7 80 40 × 81 D1 0.11 E62.E81-123D10 36 / FB3
20 1120 4.2 12.2 16 0.4 1.1 80 45 × 81 D1 0.14 E62.F81-203D10 32 / FB3
30 1120 3.3 9.5 16 0.5 1.6 80 55 × 85 D1 0.21 E62.H85-303D10 18 / FB3
33 1120 3.2 8.7 16 0.6 1.8 80 60 × 85 D1 0.25 E62.K85-333D10 18 / FB3
40 1120 3.3 7.2 16 0.7 2.1 120 65 × 95 D2 0.33 E62.L95-403D20 10 / FB1
46 1120 3.9 6.3 16 0.7 2.1 120 65 × 109 D2 0.4 E62.L10-463D20 10 / FB1
50 1120 3.7 6.3 16 0.7 2.2 120 65 × 109 D2 0.4 E62.L10-503D20 10 / FB1
60 1120 5 6 16 0.6 1.9 140 60 × 124 D1 0.4 E62.K12-603D10 18 / FB1
70 1120 6 5 16 0.6 1.9 140 60 × 148 D1 0.45 E62.K14-703D10 18 / FB7
1900V U TT 1890V DC U TC 3000V AC
U N 750V AC U rms 530V U S
4.7 1200 11.1 18.3 10 0.22 0.66 60 30 × 81 E1 0.07 E62.C81-472E10 72 / FB3
6.8 1200 3.8 19.2 16 0.2 0.60 60 40 × 85 D1 0.08 E62.E58-682D10 36 / FB4
10 1200 6.1 13.8 16 0.45 1.35 110 40 × 81 D1 0.11 E62.E81-103D10 36 / FB3
15 1260 5.9 11.6 16 0.3 0.9 110 45 × 85 B2 0.14 E62.F85-153B20 21 / FB1
22 1260 3.5 8.7 16 0.5 1.5 120 60 × 85 D1 0.25 E62.K85-223D10 18 / FB3
33 750 11.4 6 16 0.4 1 120 50 × 148 D1 0.3 E62.G14-333D10 21 / FB0
70 1260 5.6 4.3 16 0.68 2 140 65 × 160 D2 0.6 E62.L16-703D20 10 / FB7
80 1200 5.3 3.7 20 0.78 2.3 130 75 × 160 D2 0.7 E62.M16-803D20 8 / FB7
2100V U TT 2100V DC U TC 3000V AC
U N 850V AC U rms 600V U S
2 1200 8.1 25.6 10 0.18 0.5 60 30 × 58 E1 0.05 E62.C58-202E10 72 / FB4
2 1400 8.1 25.6 10 0.18 0.5 60 30 × 58 E4 0.07 E62.C58-202E40 72 / FB4
2.2 1200 7.5 25.6 10 0.2 0.6 60 30 × 58 E1 0.05 E62.C58-222E10 72 / FB4
2.2 1400 7.5 25.6 10 0.2 0.6 60 30 × 58 E4 0.07 E62.C58-222E40 72 / FB4 DATA CHARTS_DATENTABELLEN_E62 TAB
3.3 1200 13.8 18.3 10 0.1 0.3 80 30 × 81 E1 0.07 E62.C81-332E10 72 / FB3
3.3 1400 13.8 18.3 10 0.1 0.3 80 30 × 81 E4 0.08 E62.C81-332E40 72 / FB3
4 1200 11.7 18.3 10 0.18 0.5 80 30 × 81 E1 0.07 E62.C81-402E10 72 / FB3
4 1400 11.7 18.3 10 0.18 0.5 80 30 × 81 E4 0.08 E62.C81-402E40 72 / FB3
12 1400 6.2 12 16 0.3 0.8 110 45 × 85 B2 0.14 E62.F85-123B20 21 / FB1
15 1200 4.3 10 16 0.3 1 80 50 × 85 D1 0.18 E62.G85-153D10 21 / FB3
25 1200 3.6 7 16 0.6 1.7 120 65 × 95 D2 0.33 E62.L95-253D20 10 / FB1
55 1200 6 4.3 16 0.6 1.8 130 65 × 160 D2 0.6 E62.L16-553D20 10 / FB7
68 1200 5.4 3.7 16 0.74 2.2 100 75 × 160 D2 0.7 E62.M16-683D20 8 / FB7
)
Other values, dimensions and terminal combinations available on request. 13
Andere Werte, Abmessungen und Anschlußkombinationen auf Anfrage erhältlich.
