P. 22

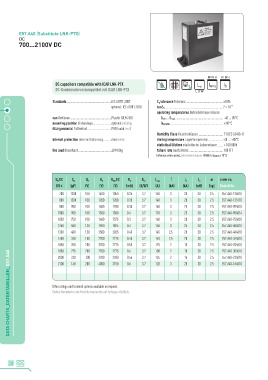

E57.A40 (Substitute LNK-P7X)
DC
700...2100V DC
HIGH HIGH
DC capacitors compatible with ICAR LNK-P7X L e
DC-Kondensatoren kompatibel mit ICAR LNK-P7X LO W
Standards .......................................................IEC 61071:2007 C N tolerance Toleranz ..............................................±10%
optional: IEC 61881:2010 tanδ 0 ........................................................................2 × 10 -4
operating temperatures Betriebstemperaturen
can Gehäuse ...................................................Plastic (UL94:V0) Θ min ... Θ max ........................................................... -40 ... 85°C
mounting position Einbaulage .......................optional beliebig Θ HOTSPOT ................................................................. ≤ 85°C
filling material Füllmittel ..............................PUR (solid fest)
Humidity Class Feuchteklasse .............................. T1 (IEC 62498-1)
internal protection interne Sicherung ..........none keine storing temperature Lagertemperatur ..................-40 ... +85°C
statistical lifetime statistische Lebensdauer ....... > 100 000h
fire load Brandlast .........................................40 MJ/kg failure rate Ausfallrate ........................................... 100 FIT
(reference service period_Referenzbetriebsdauer 100000 h, ΘHOTSPOT ≤ 70°C)
U N DC C N U R U S U BB DC R S R th I max Î I S L e m order no.
(V) ≤ (µF) (V) (V) (V) (mΩ) (K/W) (A) (kA) (kA) (nH) (kg) Bestell-Nr.
700 1200 100 1400 1050 0.25 3.7 160 3 20 30 2.5 E57.A40-125010
800 1200 100 1200 1200 0.35 3.7 140 3 20 30 2.5 E57.A40-125110
850 900 100 1600 1280 0.35 3.7 160 3 25 30 2.5 E57.A40-904010
1000 900 100 1500 1500 0.4 3.7 110 3 25 30 2.5 E57.A40-904014
1050 750 100 1600 1575 0.3 3.7 160 3 20 30 2.5 E57.A40-754010
1250 500 120 1900 1875 0.4 3.7 150 3 25 30 2.5 E57.A40-504010
1350 400 120 2500 2025 0.45 3.7 145 2,5 20 30 2.5 E57.A40-404010
1450 340 150 2700 2175 0.45 3.7 140 2,5 20 30 2.5 E57.A40-344010
1850 200 200 3200 2775 0.55 3.7 125 2 15 30 2.5 E57.A40-204010
1850 275 200 2700 2775 0.6 3.7 100 2 10 30 2.5 E57.A40-304010
DATA CHARTS_DATENTABELLEN_E57.A40
2000 220 200 2780 2780 0.55 3.7 125 2 15 30 2.5 E57.A40-224010
2100 160 200 4000 3150 0.6 3.7 120 3 20 30 2.5 E57.A40-164010
Other ratings and terminal options available on request.
Andere Nennwerte und Anschlussvarianten auf Anfrage erhältlich.
