P. 23
E57.A40 (Substitute LNK-P7X)
DC
700...2100V DC

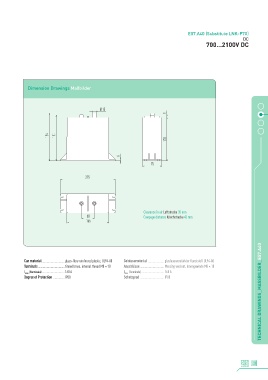

Dimension Drawings Maßbilder
Ø 15
5
184 180
170
6
75
215
Clearance in air Luftstrecke 35 mm
50 Creepage distance Kriechstrecke 45 mm
165
Can material ............................ glass-fibre reinforced plastic, UL94-A0 Gehäusematerial .................... glasfaserverstärkter Kunststoff UL94-A0
Terminals ................................. tinned brass, internal thread M8 × 10 Anschlüsse .............................. Messing verzinnt, Innengewinde M8 × 10
I max (Terminals) ............................ 160 A I max (Terminals) ............................ 160 A
Degree of Protection .............. IP00 Schutzgrad .............................. IP00 TECHNICAL DRAWINGS_MASSBILDER_E57.A40
23
