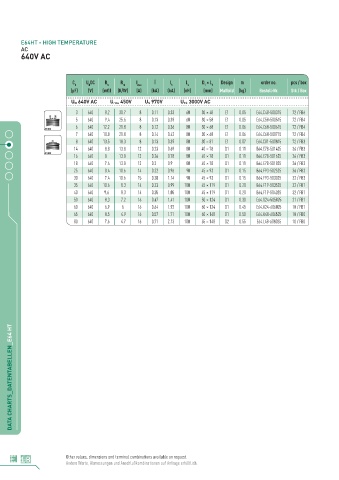

Page 18 - ELECTRONICON_Katalog_E62-E64

E64HT - HIGH TEMPERATURE
AC
640V AC

C N U DC R S R th I max Î I S L e D × L 1 Design m order no. pcs / box
N
1
(µF) (V) (mΩ) (K/W) (A) (kA) (kA) (nH) (mm) Maßbild (kg) Bestell-Nr. Stk / Box
970V U TC 3000V AC
U N 640V AC U rms 450V U S
3 640 8.2 30.7 8 0.11 0.33 60 30 × 48 E1 0.05 E64.C48-500315 72 / FB6
5 640 9.4 25.6 8 0.13 0.39 60 30 × 58 E1 0.05 E64.C58-500515 72 / FB4
6 640 12.2 21.8 8 0.12 0.36 80 30 × 68 E1 0.06 E64.C68-500615 72 / FB4
7 640 10.8 21.8 8 0.14 0.42 80 30 × 68 E1 0.06 E64.C68-500715 72 / FB4
8 640 13.5 18.3 8 0.13 0.39 80 30 × 81 E1 0.07 E64.C81-500815 72 / FB3
14 640 8.8 13.8 12 0.23 0.69 80 40 × 78 D1 0.11 E64.E78-501425 36 / FB3
16 640 8 13.8 13 0.26 0.78 80 40 × 78 D1 0.11 E64.E78-501625 36 / FB3
18 640 7.4 13.8 13 0.3 0.9 80 40 × 78 D1 0.11 E64.E78-501825 36 / FB3
25 640 8.4 10.6 14 0.32 0.96 90 45 × 93 D1 0.15 E64.F93-502525 36 / FB3
30 640 7.4 10.6 15 0.38 1.14 90 45 × 93 D1 0.15 E64.F93-503025 32 / FB3
35 640 10.6 8.3 14 0.33 0.99 100 45 × 119 D1 0.20 E64.F19-503525 32 / FB1
40 640 9.6 8.3 14 0.35 1.05 100 45 × 119 D1 0.20 E64.F19-504025 32 / FB1
50 640 8.3 7.2 16 0.47 1.41 100 50 × 124 D1 0.30 E64.G24-505025 21 / FB1
60 640 6.9 6 16 0.64 1.92 100 60 × 124 D1 0.45 E64.K24-606025 18 / FB1
65 640 8.5 4.9 16 0.57 1.71 100 60 × 148 D1 0.50 E64.K48-606525 18 / FB0
80 640 7.6 4.7 16 0.71 2.13 100 65 × 148 D2 0.55 E64.L48-608025 10 / FB0
)

DATA CHARTS_DATENTABELLEN_E64 HT

18 Other values, dimensions and terminal combinations available on request.
Andere Werte, Abmessungen und Anschlußkombinationen auf Anfrage erhältlich.
