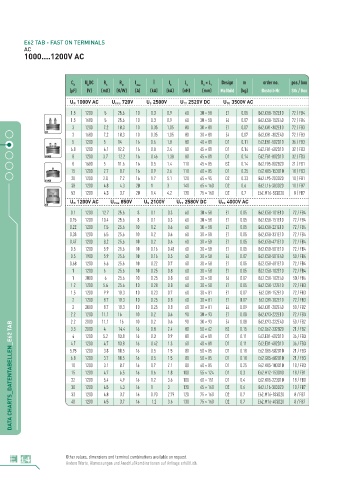

Page 14 - ELECTRONICON_Katalog_E62-E64

E62 TAB - FAST ON TERMINALS
AC
1000....1200V AC

C N U DC R S R th I max Î I S L e D × L 1 Design m order no. pcs / box
N
1
(µF) (V) (mΩ) (K/W) (A) (kA) (kA) (nH) (mm) Maßbild (kg) Bestell-Nr. Stk / Box
2500V U TT 2520V DC U TC 3500V AC
U N 1000V AC U rms 720V U S
1.5 1200 5 25.6 10 0.3 0.9 60 30 × 58 E1 0.05 E62.C58-152E10 72 / FB4
1.5 1680 5 25.6 10 0.3 0.9 60 30 × 58 E4 0.07 E62.C58-152E40 72 / FB4
3 1200 7.2 18.3 10 0.35 1.05 80 30 × 81 E1 0.07 E62.C81-302E10 72 / FB3
3 1680 7.2 18.3 10 0.35 1.05 80 30 × 81 E4 0.07 E62.C81-302E40 72 / FB3
5 1200 5 14 16 0.6 1.8 80 40 × 81 D1 0.11 E62.E81-502D10 36 / FB3
6.8 1200 4.1 12.2 16 0.8 2.4 80 45 × 81 D1 0.14 E62.F81-682D10 32 / FB3
8 1200 3.7 12.2 16 0.46 1.38 80 45 × 81 D1 0.14 E62.F81-802D10 32 / FB3
8 1680 5 11.6 16 0.5 1.4 110 45 × 85 B2 0.14 E62.F85-802B20 21 / FB1
15 1200 2.7 8.7 16 0.9 2.6 110 60 × 85 D1 0.25 E62.K85-153D10 18 / FB3
20 1200 2.8 7.2 16 1.7 5.1 120 65 × 95 D2 0.33 E62.L95-203D20 10 / FB1
38 1200 4.8 4.3 20 1 3 140 65 × 160 D2 0.6 E62.L16-383D20 10 / FB7
53 1200 4.3 3.7 20 1.4 4.2 130 75 × 160 D2 0.7 E62.M16-533D20 8 / FB7
2100V U TT 2580V DC U TC 4000V AC
U N 1200V AC U rms 850V U S
0.1 1200 12.7 25.6 8 0.1 0.3 60 30 × 58 E1 0.05 E62.C58-101E10 72 / FB4
0.15 1200 10.4 25.6 8 0.1 0.3 60 30 × 58 E1 0.05 E62.C58-151E10 72 / FB4
0.22 1200 7.5 25.6 10 0.2 0.6 60 30 × 58 E1 0.05 E62.C58-221E10 72 / FB4
0.33 1200 6.5 25.6 10 0.2 0.6 60 30 × 58 E1 0.05 E62.C58-331E10 72 / FB4
0.47 1200 8.2 25.6 10 0.2 0.6 60 30 × 58 E1 0.05 E62.C58-471E10 72 / FB4
0.5 1200 5.9 25.6 10 0.16 0.48 60 30 × 58 E1 0.05 E62.C58-501E10 72 / FB4
0.5 1900 5.9 25.6 10 0.16 0.5 60 30 × 58 E4 0.07 E62.C58-501E40 50 / FB4
0.68 1200 6.6 25.6 10 0.22 0.7 60 30 × 58 E1 0.05 E62.C58-681E10 72 / FB4
1 1200 6 25.6 10 0.25 0.8 60 30 × 58 E1 0.05 E62.C58-102E10 72 / FB4
1 2000 6 25.6 10 0.25 0.8 60 30 × 58 E4 0.07 E62.C58-102E40 50 / FB4
1.2 1200 5.6 25.6 10 0.28 0.8 60 30 × 58 E1 0.05 E62.C58-122E10 72 / FB3
1.5 1200 9.9 18.3 10 0.23 0.7 60 30 × 81 E1 0.07 E62.C81-152E10 72 / FB3
2 1200 8.7 18.3 10 0.25 0.8 60 30 × 81 E1 0.07 E62.C81-202E10 72 / FB3
2 2000 8.7 18.3 10 0.25 0.8 60 30 × 81 E4 0.09 E62.C81-202E40 50 / FB2
2.2 1200 11.1 16 10 0.2 0.6 90 30 × 93 E1 0.08 E62.C93-222E10 72 / FB3
2.2 2000 11.1 16 10 0.2 0.6 90 30 × 93 E4 0.08 E62.C93-222E40 50 / FB2
DATA CHARTS_DATENTABELLEN_E62 TAB
3.3 2000 4 14.4 16 0.8 2.4 80 50 × 62 B2 0.15 E62.G62-332B20 21 / FB2
4 1200 5.2 13.8 16 0.3 0.9 80 40 × 81 D1 0.11 E62.E81-402D10 36 / FB3
4.7 1200 4.7 13.8 16 0.42 1.3 60 40 × 81 D1 0.11 E62.E81-482D10 36 / FB3
5.75 1200 3.8 10.5 16 0.5 1.5 80 50 × 85 D1 0.18 E62.G85-582D10 21 / FB3
6.8 1200 3.7 10.5 16 0.5 1.5 80 50 × 85 D1 0.18 E62.G85-682D10 21 / FB3
10 1200 3.1 8.7 16 0.7 2.1 80 60 × 85 D1 0.25 E62.K85-103D10 18 / FB3
15 1200 4.7 6.5 16 0.6 1.8 100 55 × 124 D1 0.3 E62.H12-153D10 18 / FB1
22 1200 5.4 4.9 16 1.2 3.6 100 60 × 151 D1 0.4 E62.K15-223D10 18 / FB0
30 1200 4.5 4.3 16 1 3 130 65 × 160 D2 0.6 E62.L16-303D20 10 / FB7
33 1200 4.8 3.7 16 0.93 2.79 120 75 × 160 D2 0.7 E62.M16-333D20 8 / FB7
40 1200 4.5 3.7 16 1.2 3.6 130 75 × 160 D2 0.7 E62.M16-403D20 8 / FB7

14 Other values, dimensions and terminal combinations available on request.
Andere Werte, Abmessungen und Anschlußkombinationen auf Anfrage erhältlich.
