P. 15

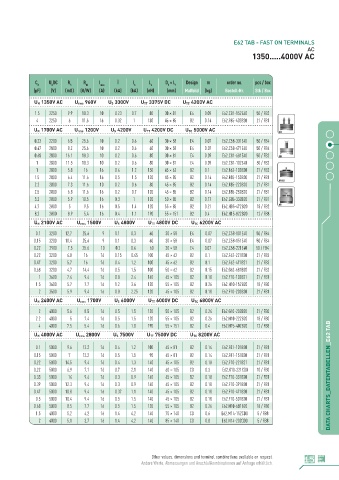

E62 TAB - FAST ON TERMINALS
AC
1350.....4000V AC
C N U DC R S R th I max Î I S L e D × L 1 Design m order no. pcs / box
1
N
(µF) (V) (mΩ) (K/W) (A) (kA) (kA) (nH) (mm) Maßbild (kg) Bestell-Nr. Stk / Box
3300V U TT 3375V DC U TC 4200V AC
U N 1350V AC U rms 960V U S
1.5 2250 9.9 18.3 10 0.23 0.7 80 30 × 81 E4 0.09 E62.C81-152E40 50 / FB2
4 2250 6 11.6 16 0.32 1 130 45 × 85 B2 0.14 E62.F85-402B20 21 / FB1
4200V U TT 4200V DC U TC 5000V AC
U N 1700V AC U rms 1200V U S
0.33 2200 6.5 25.6 10 0.2 0.6 60 30 × 58 E4 0.07 E62.C58-331E40 50 / FB4
0.47 2800 8.2 25.6 10 0.2 0.6 60 30 × 58 E4 0.07 E62.C58-471E40 50 / FB4
0.68 2800 16.1 18.3 10 0.2 0.6 80 30 × 81 E4 0.09 E62.C81-681E40 50 / FB2
1 2800 11.5 18.3 10 0.2 0.6 80 30 × 81 E4 0.09 E62.C81-102E40 50 / FB2
1 2800 5.8 16 16 0.4 1.2 150 45 × 62 B2 0.1 E62.F62-102B20 21 / FB3
1.5 2800 6.4 11.6 16 0.5 1.5 120 45 × 85 B2 0.14 E62.F85-152B20 21 / FB1
2.2 2800 7.3 11.6 10 0.2 0.6 80 45 × 85 B2 0.14 E62.F85-222B20 21 / FB1
2.5 2800 6.8 11.6 16 0.2 0.7 120 45 × 85 B2 0.14 E62.F85-252B20 21 / FB1
3.3 2800 5.9 10.5 16 0.3 1 120 50 × 85 B2 0.17 E62.G85-332B20 21 / FB1
4.7 2800 5 9.5 16 0.5 1.4 120 55 × 85 B2 0.21 E62.H85-472B20 18 / FB2
8.2 2800 8.9 5.4 16 0.4 1.1 190 55 × 151 B2 0.4 E62.H15-822B20 12 / FB8
4800V U TT 4800V DC U TC 6200V AC
U N 2100V AC U rms 1500V U S
0.1 3200 12.7 25.6 9 0.1 0.3 60 30 × 58 E4 0.07 E62.C58-101E40 50 / FB4
0.15 3200 10.4 25.6 9 0.1 0.3 60 30 × 58 E4 0.07 E62.C58-151E40 50 / FB4
0.22 3200 7.5 25.6 10 0.2 0.6 60 30 × 58 E4 0.07 E62.C58-221E40 50 / FB4
0.22 3200 6.8 16 16 0.15 0.45 100 45 × 62 B2 0.1 E62.F62-221B20 21 / FB3
0.47 3200 5.7 16 16 0.4 1.2 100 45 × 62 B2 0.1 E62.F62-471B21 21 / FB3
0.68 3200 4.7 14.4 16 0.5 1.5 100 50 × 62 B2 0.15 E62.G62-681B20 21 / FB2
1 3600 7.4 9.4 16 0.8 2.4 140 45 × 105 B2 0.18 E62.F10-102B21 21 / FB1
1.5 3600 5.7 7.7 16 1.2 3.6 120 55 × 105 B2 0.26 E62.H10-152B20 18 / FB0
2 3500 5.9 9.4 16 0.8 2.25 120 45 × 105 B2 0.18 E62.F10-202B20 21 / FB1
6000V U TT 6000V DC U TC 6800V AC
U N 2400V AC U rms 1700V U S
2 4000 5.6 8.5 16 0.5 1.5 120 50 × 105 B2 0.24 E62.G10-202B20 21 / FB0
2.2 4000 5 7.4 16 0.5 1.5 120 55 × 105 B2 0.26 E62.H10-222B20 18 / FB0
4 4000 7.5 5.4 16 0.6 1.8 190 55 × 151 B2 0.4 E62.H15-402B20 12 / FB8
7500V U TT 7500V DC U TC 8200V AC
U N 4000V AC U rms 2800V U S
0.1 5000 9.6 12.2 16 0.4 1.2 100 45 × 81 B2 0.14 E62.F81-101B20 21 / FB1
0.15 5000 7 12.2 16 0.5 1.5 90 45 × 81 B2 0.14 E62.F81-151B20 21 / FB1
0.22 5000 14.5 9.4 16 0.4 1.3 140 45 × 105 B2 0.18 E62.F10-221B21 21 / FB1
0.22 5000 6.9 7.1 16 0.7 2.1 140 60 × 105 CD 0.3 E62.K10-221CD0 10 / FB0
0.33 5000 14 9.4 16 0.3 0.9 140 45 × 105 B2 0.18 E62.F10-331B20 21 / FB1 DATA CHARTS_DATENTABELLEN_E62 TAB
0.39 5000 12.3 9.4 16 0.3 0.9 140 45 × 105 B2 0.18 E62.F10-391B20 21 / FB1
0.47 5000 10.8 9.4 16 0.37 1.1 140 45 × 105 B2 0.18 E62.F10-471B20 21 / FB1
0.5 5000 10.4 9.4 16 0.5 1.5 140 45 × 105 B2 0.18 E62.F10-501B20 21 / FB1
0.68 5000 8.5 7.7 16 0.5 1.5 120 55 × 105 B2 0.26 E62.H10-681B20 18 / FB0
1.5 4000 5.2 4.2 16 1.4 4.2 140 75 × 140 CD 0.6 E62.M14-152CD0 5 / FB8
2 4000 5.1 3.7 16 1.4 4.2 140 85 × 140 CD 0.8 E62.N14-202CD0 5 / FB8
Other values, dimensions and terminal combinations available on request. 15
Andere Werte, Abmessungen und Anschlußkombinationen auf Anfrage erhältlich.
