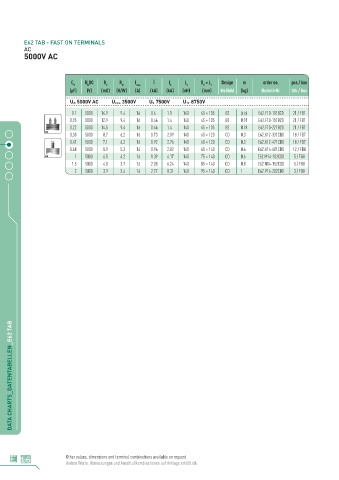

P. 16
E62 TAB - FAST ON TERMINALS
AC
5000V AC
C N U DC R S R th I max Î I S L e D × L 1 Design m order no. pcs / box
N
1
(µF) (V) (mΩ) (K/W) (A) (kA) (kA) (nH) (mm) Maßbild (kg) Bestell-Nr. Stk / Box
7500V U TT 8750V
U N 5000V AC U rms 3500V U S
0.1 5000 14.9 9.4 16 0.4 1.1 140 45 × 105 B2 0.18 E62.F10-101B20 21 / FB1
0.15 5000 12.9 9.4 16 0.44 1.4 140 45 × 105 B2 0.18 E62.F10-151B20 21 / FB1
0.22 5000 14.5 9.4 16 0.44 1.4 140 45 × 105 B2 0.18 E62.F10-221B20 21 / FB1
0.33 5000 8.7 6.2 16 0.73 2.19 140 60 × 120 CD 0.3 E62.K12-331CD0 18 / FB7
0.47 5000 7.1 6.2 16 0.92 2.76 140 60 × 120 CD 0.3 E62.K12-471CD0 18 / FB7
0.68 5000 8.9 5.3 16 0.94 2.82 140 60 × 140 CD 0.4 E62.K14-681CD0 12 / FB8
1 5000 6.5 4.2 16 1.39 4.17 140 75 × 140 CD 0.6 E62.M14-102CD0 5 / FB8
1.5 5000 4.8 3.7 16 2.08 6.24 140 85 × 140 CD 0.8 E62.N14-152CD0 5 / FB8
2 5000 3.9 3.4 16 2.77 8.31 140 95 × 140 CD 1 E62.P14-202CD0 3 / FB8
DATA CHARTS_DATENTABELLEN_E62 TAB
16 Other values, dimensions and terminal combinations available on request.
Andere Werte, Abmessungen und Anschlußkombinationen auf Anfrage erhältlich.
